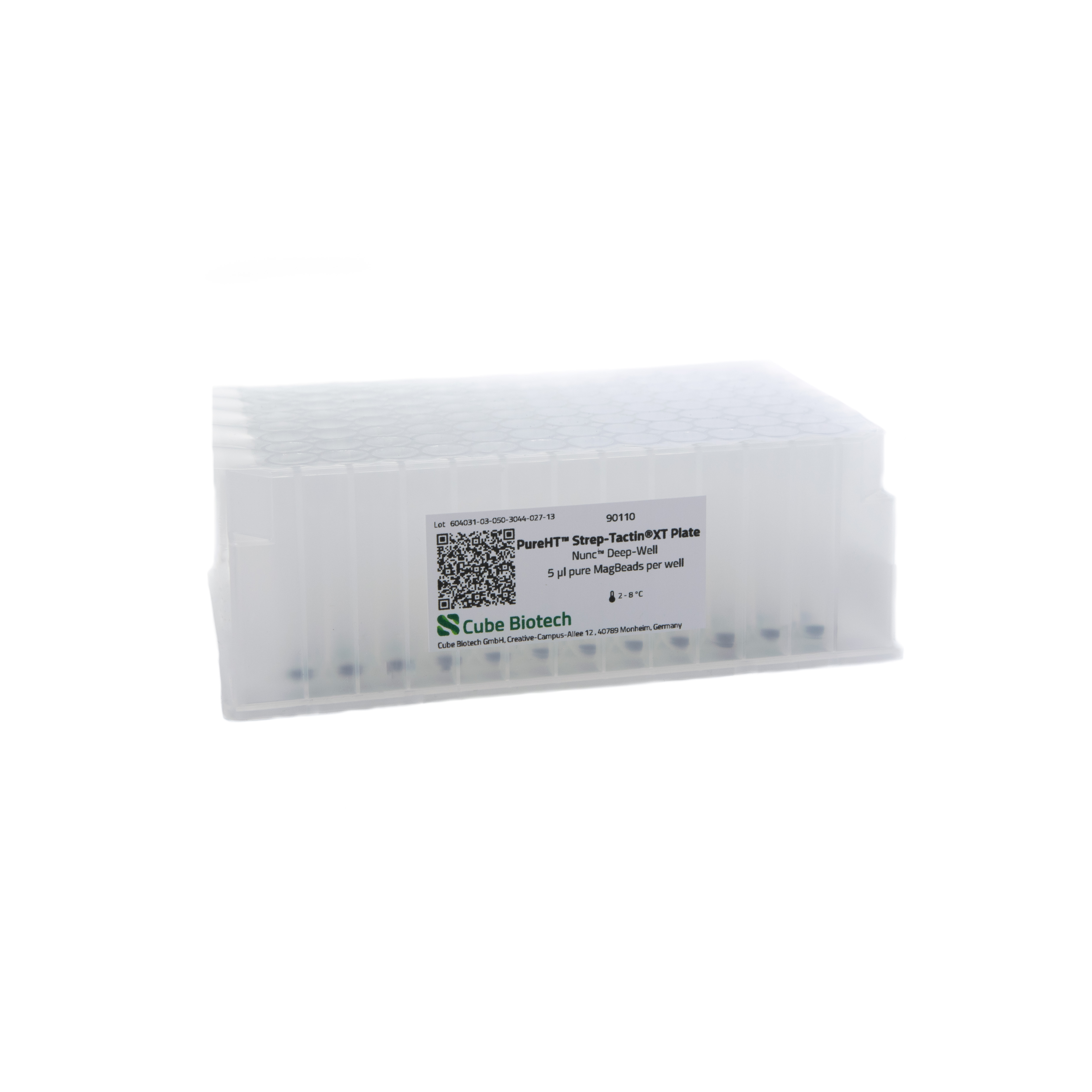

PureHT™ Strep-Tactin®XT Plate (Nunc™ 96 Deep-Well)

Order number: 90110

€693.00*

Ready to ship today

Amount

Quantity

Description

PureHT™ Strep-Tactin®XT Plates feature IBA Lifesciences’ high-affinity Strep-Tactin®XT resin — now integrated into Cube’s patented dried-bead plate technology. Optimized for the purification of Twin-Strep-tagged proteins, these 96-deep-well plates deliver highly reproducible results across wells and conditions, enabling efficient screening and scale-up. With a total of 480 µl of pure magnetic beads per plate (at 5 µl per well), you have everything you need for a successful purification.

Compatibility and Customization
Compatible with a wide range of liquid handling robots (Opentrons, Hamilton STAR, Analytik Jena CyBio FeliX), these plates provide a reliable foundation for high-throughput protein purification.

Beyond ready-made Strep-Tactin®XT plates, Cube Biotech offers customized solutions: select your preferred resin, plate type, and bead volume per well. Fill out our PureHT™ Custom Plate Request Form to configure the ideal plate for your workflow.

Nunc™ 96 Deep-Well Plates
Nunc-format plates are a versatile option compatible with most common liquid handling platforms. They are ideal for laboratories running a variety of robotic systems, offering flexibility and reliability across diverse workflows.

For more prices and information, contact our Sales Representatives and they will help you through the entire process via contact@cube-biotech.com.

Datasheets

Feature	PureHT™ Strep-Tactin®XT Plate
Usage	Protein purification of Strep-tag®II and Twin-Strep-tag® fusion proteins
Application	High-throughput protein purification in 96 well format
Specificity	Twin-Strep-tag® and Strep-tag®II
Binding capacity	Up to 212 µg protein per well. Binding capacity was determined with a 50 kDa Twin-Strep-tag® fusion protein. Please note that the binding capacity is protein dependent.
Bead Ligand	Strep-Tactin®XT
Bead size	20-40 µm (30 µm average)
Matrix	6% agarose, crosslinked
Bead amount	5 µl dried magnetic beads per well
Stability	6 months after shipping
Storage Conditions	2-8°C
Shipping Conditions	Room temperature

Lab Results

Heatmap of relative yield after purification with PureHT Strep-TactinXT Plates — Fig. 1: Heatmap of relative yields after the purification of a Twin -Strep-tagged protein with PureHT^TM Strep-Tactin®XT Plates. The high reproducibility is showcased by a low well-to-well variability (CV ≤5%).

Multiple Screening Conditions on PureHT Plate — Fig. 2: 96-well plate setup for the protein purification screening of Twin-Strep-tagged mitogen-activated protein kinase 14 (MAPK14/p38-α) using a PureHT^TM Strep-Tactin®XT plate. This way, the influence of different buffer conditions (salt concentration and pH value) as well as varying pellet dilution/lysate viscosity could be screened in parallel.

Disclaimer

Strep-Tactin® and Strep-tag® are trademarks of IBA GmbH. Strep-Tactin® Agarose is manufactured by IBA GmbH under German Patent Application No. 42 37 113.9 entitled "Fusion peptides with binding activity for streptavidin".
