PlateX MP™ Strep-Tactin®XT MagBeads
Order number: 90810
Description

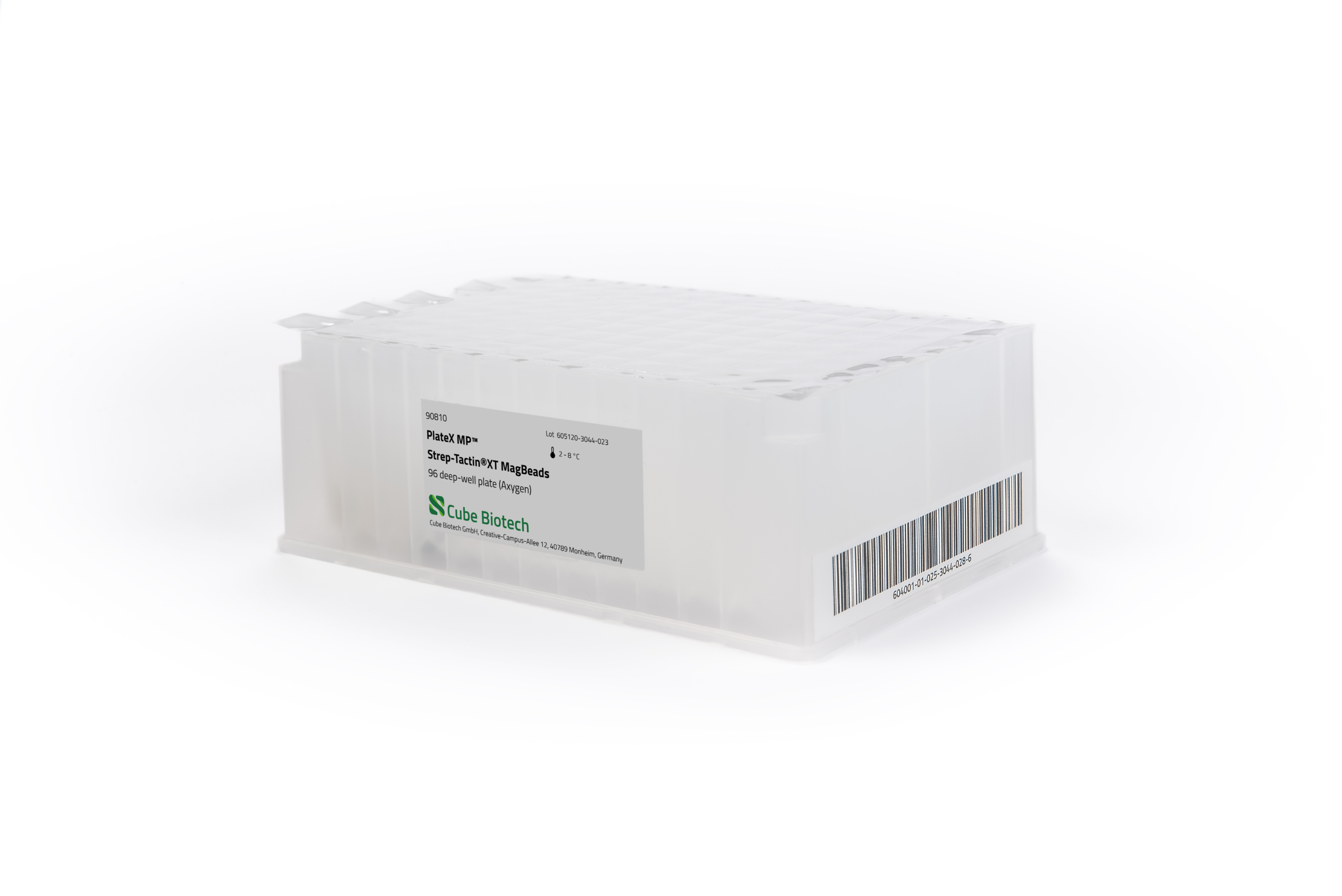

PlateX MP™ Strep-Tactin®XT MagBeads is a ready-to-use plate for automated membrane protein
solubilization and purification via Rho1D4-tag. It enables rapid identification of the most effective
synthetic copolymer out of eight variants for subsequent upscaling of membrane protein production.
The plate contains all required reagents - copolymers, HighSpec Rho1D4 MagBeads and
equilibration, wash and elution buffers - in a lyophilized format
We offer PlateX MP™ plates come in two plate types har - Axygen and INTEGRA, and where tested on INTEGRA and Analytic Jena instruments for which downloadable protocols exist.
We offer PlateX MP™ plates come in two plate types har - Axygen and INTEGRA, and where tested on INTEGRA and Analytic Jena instruments for which downloadable protocols exist.
Datasheets
- PlateX MP™ Protocol for CyBio FeliX by Analytic Jena
- PlateX MP™ Protocol for ASSIST-PLUS by INTEGRA
- PlateX MP™ Strep-Tactin®XT MagBeads (Axygen) Datasheet
- Technical Measurements of Axygen Plates
- PlateX MP™ Strep-Tactin®XT MagBeads (INTEGRA) Datasheet
- Copolymer / Synthetic Nanodisc MSDS (International version) + Addendum
- Copolymer / Synthetic Nanodisc MSDS (US version) + Addendum
- Strep-Tactin® MSDS (International version) + Addendum
- Strep-Tactin® MSDS (US version) + Addendum
Advantages of PlateX MP™ plates:
PlateX MP™ is a multi-component product, bringing together 5 different technologies from the Cube Biotech portfolio, and presenting multiple features.
- A time-saving pre-loaded ‘workflow mix’ for membrane protein purification that allows you to avoid long multistep experimental protocols
- Lyophilised components in the ‘workflow mix’,that ensure stability of components at room temperature
- A set of 8 NativeMP™ copolymers, that allow you to test 8 solubilisation conditions in a single run.
- Affinity Chromatography MagBeads, zhat allow purification of stabilised membrane proteins in the same well.
- Automation-ready experimental setup, including protocol for an easy set up an experiment on your liquid handling robot.

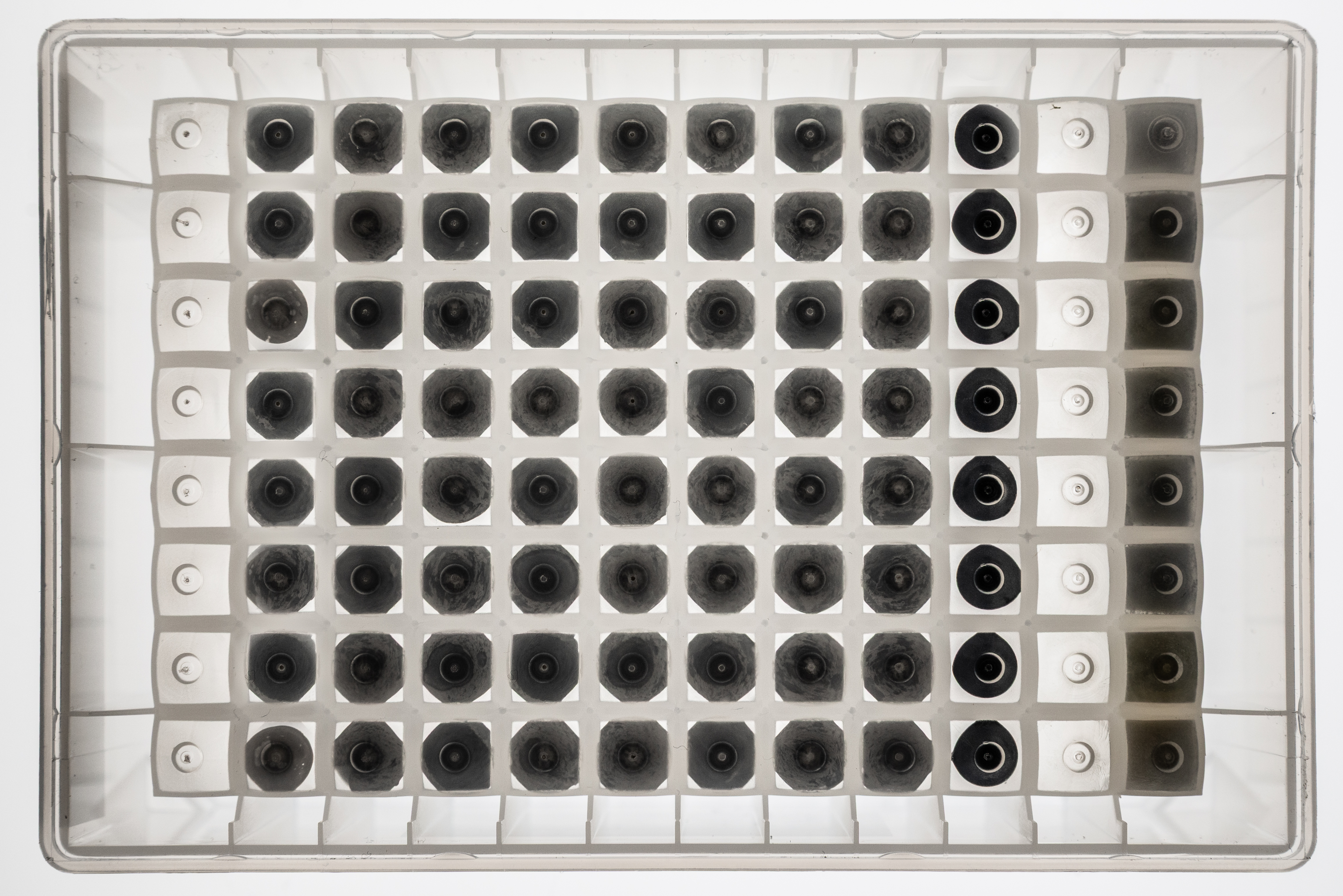

Content and setup of a PlateX MP™ plate:
| Content: | |
|---|---|
| Copolymer A | Cubipol |
| Copolymer B | Cubipol Glycerol |
| Copolymer C | Sulfo-Cubipol |
| Copolymer D | Sulfo-Cubipol Medium |
| Copolymer E | Sulfo-Cubipol Lite |
| Copolymer F | Glyco-Cubipol |
| Copolymer G | Cubipol PEG |
| Copolymer H | Cubipol Amine |
| Affinity MagBeads | MagStrep® Strep-Tactin®XT beads |
| Other Features | |
|---|---|
| Application | Automated membrane protein solubilization and purification in 96 well format with Analytik Jena CyBio Felix System or INTEGRA ASSIST PLUS System. |
| Plate type | INTEGRA 96 deep-well plate (INTEGRA, Cat. No. 6353) OR Axygen 96 deep-well plate (Corning, Cat. No. P-2ML-SQ-C) |
| Protein yield | Highly protein- and copolymer-dependent. |
| Protein Affinity | Purifies Twin-Strep-/Strep-tagged Proteins |
| Working pH | Optimal: pH 7-8 |
| Stability / Shelf-Life | 6 months after shipping |
| Storage Temperature | 4°C |
| Shipping Temperature | 4°C |
| Manufacturer | Cube Biotech |
| Hazard Information | Product is not classified as hazardous according to (EC) No 1272/2008 [CLP]. A Material Safety Data Sheet is provided. |
Citations
Powered by Bioz
Lab Results

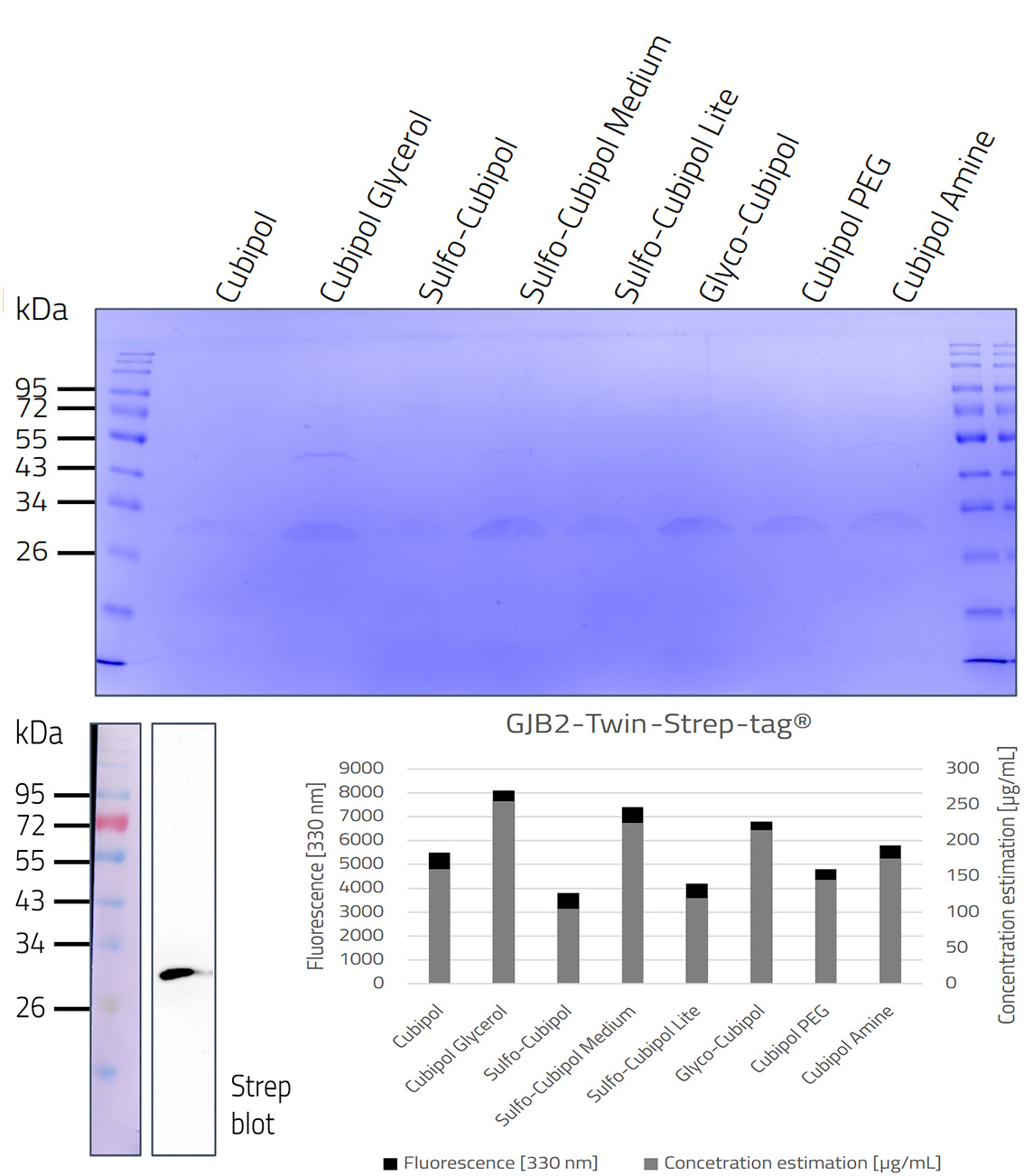

Yield and purification performance of the gap junction protein GJB2 (29 kDa) fused to a Twin-Strep-tag®, stabilized and purified using PlateX MP™ plates. Solubilization success was evaluated by SDS-PAGE, and protein identity was confirmed by Western blot using an antibody against the Twin-Strep tag. Protein yield was quantified by intrinsic fluorescence analysis of eluates (330 nm emission; black bars) and converted to estimated concentration (grey bars) using a BSA standard curve. Black arrows indicate the target protein.
Coming soon:
Cube Biotech and Integra will soon release an Application note that will further go into the details of PlateX MP™ You will find it linked here once it is released. Planned release: February 2026
Example proteins screen and purified using PlateX MP™
| Protein | Affinity tag | Membrane protein class |
|---|---|---|
| GLP1R | Rho1D4-tag | GPCR |
| GIPR | GIPR Rho1D4-tag or FLAG-tag GPCR | GPCR |
| P2X4 | Rho1D4-tag | P2X4 Rho1D4-tag Ion Channel |
| LAMP1 | Twin-Strep-tag® | Lysosomal Glycoprotein |
| CCR5 | Twin-Strep-tag® | Receptor |
| GJB2 | Twin-Strep-tag® | Gap junction protein |
| ADORA2A | FLAG-tag | GPCR |
| GJB4 | FLAG-tag | Gap junction protein |
